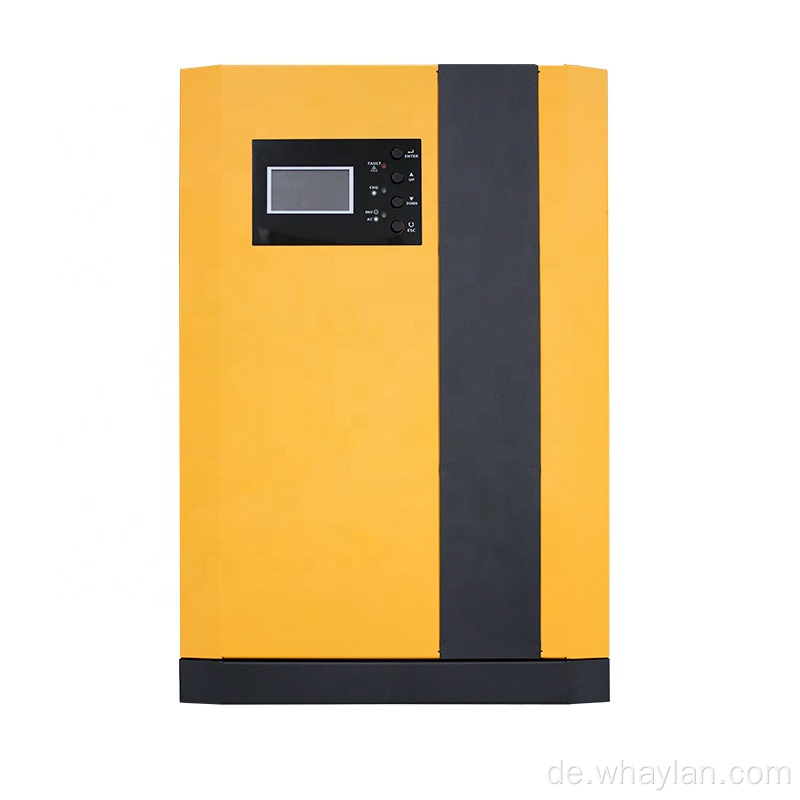

5 kW Solar-Wechselrichter mit integriertem Ladungscontroller

Zahlungsart:T/T

Incoterm:FOB

Transport:Land,Ocean

Hafen:shenzhen

$3501-19Others

$33020-99Others

$310≥100Others

Produkteigenschaften
Lieferfähigkeit & Zusatzinformationen
Verpackung & Lieferung
Other information

Produkteigenschaften

Marke: Whaylan

Ausgabetyp: VERDREIFACHEN

Arten Von: DC / DC-Wandler

Place Of Origin: Guangdong, China

Brand Name: SNADI

Model Number: SNT PLUS

Input Voltage: 24VDC

Output Voltage: 90-280VAC(For Home Appliances)

Output Current: 100A

Ausgangsfrequenz: 50 Hz/60 Hz

Output Type: Single

Size: 100*300*440mm

Typ: DC/AC Wechselrichter

Wechselrichter -Effizienz: 98%

Zertifikate : Ce,Rohs,Iso9001

Garantie: 1 Jahr

Weight: 12kgs

Product Name: High Frequency Solar Inverter

Rated Power: 3500VA/3500W

Selectable Voltage Range: 90-280VAC(For Home Appliances)

Frequency Range: 50 Hz/60Hz(Auto sensing)

Surge Power: 7000VA

Efficiency(Peak)PV To INV: 97%

Maximum PV Array Power: 5000W

Maximum PV Array Open Circuit Voltage: 5OOVDC

Maximum Charging Current: 100a

Communication Interface: USB/RS232/G PRS/WIFI

Lieferfähigkeit & Zusatzinformationen

Verpakung: Standard -Exportpaket

Produktivität: 3000 sets per month

Transport: Land,Ocean

Ort Von Zukunft: Jiangsu

Unterstützung über: 3000 sets per month

Zertifikate : CE,FCC,MSDS,roHs

Hafen: shenzhen

Zahlungsart: T/T

Incoterm: FOB

Verpackung & Lieferung

Verkaufseinheiten:

set

Pakettyp:

Standard -Exportpaket

Bildbeispiel:



Whaylan Hot Sale Pure Sinus Welle Einphase gelb MPPT 3,5 kW 5,5 kW von Gitter Home WiFi Hybrid MPPT Solar Wechselrichter ohne Batterie für Solarstromsystem1111



3,5 kW Hochfrequenzhybrid -Solar -Wechselrichter mit 100A -Ladung Controller

Produktbeschreibung

Technische Indizes

Model	SNT-3.5KW PlUS	SNT-3.5KW PlUS
RATED POWER	35OOVA/35OOW	5500VA/5500W
Input
Voltage	230VAC
Selectable Voltage Range	170-280VAC(For Personal Computers)
Selectable Voltage Range		90-280VAC(For Home Appliances)
Frequency Range	50 Hz/60Hz(Auto sensing)
OUTPUT
AC Voltage Regulation (Batt . Mode)	230VAC 士5%
Surge Power	7000VA	11000VA
Efficiency(Peak)PV to INV	97%
Efficiency(Peak)Battery to INV	94%
Transfer Time	10 ms (For Personal Computers);20 ms (For Home Appliances)
BATTERY & AC CHARGER
Battery Voltage	24VDC	48VDC
Floating Charge Voltage	27VDC	54VDC
Overcharge Protection	33VDC	63VDC
Maximum Charge Current	100A	100A
SOLAR CHARGER
Maximum PV Array Power	5000W 6000W
M PPT Range@ Operating Voltage	120~450VDC
Maximum PV Array Open Circuit Voltage	5OOVDC
Maximum Charging Current	100A 100A
Maximum Efficiency	98%
PHYSICAL
Dimension,DWH(mm)	100300440
Net Weight(kgs)	11	12
Communication interface	USB/RS232/G PRS/WIFI
OPERA TING ENVIRONMENT
Mumidity	5% to 95% Relative Humidity(Non~condensing)
Operating Temperature	0°(~ 55°(
Storage Temperature	-15°C~60°C

Wechselrichtersystem -Verbindungsdiagramm

Details Bilder

Verpackung & Lieferung

Welche Dienste können Sie erhalten?

On-line Consulting Service	Answer Questions Any Time, on-line 24 HOURS
After-Sale Service	1-Year Warranty, 1%-3% Free Spare Parts Offered
Technical Support & Consultancy	Offered Free
Shipping Services	SNAT Solar can do shipment for you Or can Choose your shipping Agent
OEM & ODM Design	Welcomed
System Solutions & Problem Sulotions	Yes, we gladly offer good solution to our Customers
Accessories or Parts for Repairing	Glad to supplies related Parts to our Customers,if necessary

TradeTerms	EXW,FOB,CNF(CFR),CIF
PaymentTerms	T/T	T/T 30% in advance before production, the balance 70% before shipment
		Trade Assurance	Can Pay by Paylater ,Credit Card ,Different Currency....
		Western Union	/
Delivery Time	1-3days for sample order (2pcs), within 25 working days for bulk order

Zertifizierungen
